Netgear WNR1000: setup guide

Summary: A step by step guide to help you connect to the Internet with your Netgear WNR1000 router. This guide can be used with Windows and Apple systems.

Before you get started

  • See our Plusnet Fibre FAQs if you have any questions about Plusnet Fibre and how it's installed

  • To find out more about your router, please see our Netgear WNR1000: FAQs

  • If you have any problems, please see Netgear WNR1000: troubleshooting before contacting us

  • Your router and BT Openreach modem can get too warm if air can't flow around them. Try to avoid putting them under a desk, on a carpet/other fabric, or behind large objects

  • We recommend leaving your router and BT Openreach modem switched on all the time (even if you're not using them - read our broadband speed tips to find out why). If you can, connect it to an unused power socket and make sure that it won't be switched off with other items

  1. What you'll need to get connected
  2. Connect your router
  3. Connect your computer
  4. Get online

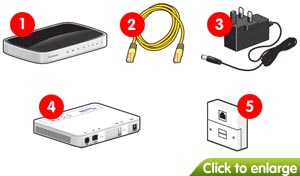

1. What you'll need to get connected

  1. Your Netgear WNR1000 router
  2. Ethernet cable (yellow ends)
  3. Power supply
  4. BT Openreach modem
  5. Fibre master socket

The BT Openreach Modem and Fibre master socket
are supplied and fitted by the BT engineer who
installs your service.

What you'll need to get connected
[Top]

2. Connect your router

When the engineer has finished the installation you can start setting up your router.

If you haven't done so already, now is a good time to switch off and unplug your old broadband router and put it to one side. You can also unplug any microfilters you were using (your new master socket has a built in filter, so you won't need them anymore).

Step 1

Plug the power cable into the back of your router and connect the other end into a power socket.

Step 2

Connect the Ethernet cable (yellow ends) to the LAN 1 socket on the BT Openreach modem.

Connect the Ethernet cable (yellow ends) to LAN 1 on the modem.
Step 3

Connect the other end of the Ethernet cable to the yellow Ethernet socket on the back of your router.

Connect the other end of the Ethernet cable to the yellow Ethernet socket on the back of your router.
Step 4

Press the black power button on the back of your router to switch it on.

Wait for the Power light on the front of your router to turn green before you continue (this should take about a minute).

Press the black power button on the back of your router to switch it on.

Wait for the Power light on the front of your router to turn green before you continue (this should take about a minute).

[Top]

3. Connect your computer

When setting up for the first time, we think it's easier to use the Ethernet cable. This way you can make sure everything is working and you'll be online in no time.

If using the Ethernet cable isn't convenient or you'd prefer to use wireless right away, please see our Wireless connection guides (remember to return here and follow part 4 when you're done!).

How to connect using the Ethernet cable

Step 1

Plug an Ethernet cable into one of the 4 Ethernet sockets on the back of your router.

Plug an Ethernet cable into one of the 4 Ethernet sockets on the back of your router.
Step 2

Plug the other end of the Ethernet cable into your computer's Ethernet socket. The Ethernet light on the router will turn green or flash.

Your computer is now connected to your router, please go to part 4.

Plug the other end of the Ethernet cable into your computer's Ethernet socket. The Ethernet light on the router will turn green or flash.

Your computer is now connected to your router, please go to part 4.

[Top]

4. Get online

  1. Make yourself a tea or coffee and don't touch your computer or router for 15 minutes.

    (Don't try to use the Internet while you're waiting, as your router might still be setting itself up)

  2. After 15 minutes, open your computer's web browser (e.g. Internet Explorer, Safari or Firefox). And that's it. You should see your web browser's home page - congratulations! You're now connected and able to browse the Internet.

    If you didn't see your home page, you'll probably see one of the screens below:

    I see the Broadband Setup page when I open my web browser I see an error page when I open my web browser
    This is the Broadband Setup page, enter the username and password you log into this site with and click Go. I see an error page when I open my web browser.

    Enter your Account Username and password (the ones you use to log into this site), choose your provider and press Go.

    You'll see a confirmation screen shortly afterwards and you'll be able to start browsing.

    Please click here for further instructions.

    (If you print this guide, the further instructions will be shown underneath this box)

How to setup your router

  1. In your web browser, go to www.routerlogin.net (or 192.168.1.254 if that doesn't work).

    You'll be asked for a username and password. The username is admin and the password is password.

  2. If you see the message below, ignore it and click OK (you're not connected to the Internet yet).

    Ignore the firmware update message.
  3. You'll now see the Basic Settings screen:

    The basic settings screen.
  4. Select Yes under Does Your Internet Connection Require A Login?

    Select 'Yes' under under 'Does your Internet Connection Require A Login?'
  5. This will allow you to fill in the section below:

    Fill in the section as shown below this image.
    • In the Login box, enter your Broadband Username (find it under Connection Settings in My Account if you're not sure what this is)
    • In the Password box, enter your account password (it's the one you use to log in to this website)
    • Leave Service Name blank
    • Change Connection Mode to Always On
  6. When you've completed the above, click Apply to save the settings. This will take about a minute.

    Click Apply to save the settings when you've done.
  7. After saving the settings, you'll be taken back to the Basic Settings screen. You can now close your web browser.

  8. When the Internet light on your router turns green, you're connected to the Internet. Open your web browser again and you should see your home page.

    When the Internet light turns green, you're connected.

[Top]

This page last updated 26th June 2012
