Summary: A step by step guide to help you connect to the Internet with your Technicolor 582n router. This guide can be used with Windows and Apple systems.

Before you get started

  • If you have any questions about your router, please see Technicolor 582n: Frequently asked questions
  • Make sure your broadband connection is up and running before you set up your router - we'll contact you (via email and text message if we have your mobile number) when it's ready
  • Broadband works best when your router is connected to the master telephone socket (it's usually the one closest to where your phone line enters your home)
  • Your router can get too warm if air can't flow around it. Try to avoid putting it under a desk, on a carpet/other fabric, or behind large objects
  • If you're going to use wireless, try to place your router close to where you'll be using broadband the most. Thick walls, concrete floors and large metal surfaces can weaken the wireless signal, so try to avoid these where possible
  • We recommend leaving your router switched on all the time (even if you're not using it - read our broadband speed tips to find out why). If you can, connect it to an unused power socket and make sure that it won't be switched off with other items
  1. What's in the box?
  2. Connect your microfilters
  3. Connect your router
  4. Connect your computer
  5. Get online
  6. Troubleshooting: What are the lights on the router telling me?

1. What's in the box?

Check that you've got the following items:

  1. Your Technicolor 582n router
  2. Ethernet cable (yellow ends)
  3. Microfilters
  4. Power supply (two-part)
  5. Internet cable (grey ends)
  6. Setup card
  7. Setup guide (not shown)

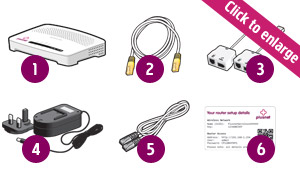

The contents of your router pack.
[Top]

2. Connect your microfilters

Microfilters already plugged in? Go to part 3 and connect your router.

Plug a microfilter into each telephone socket you use in your property. If you had to unplug something you can plug it back into the Phone socket of the microfilter.

Phone sockets can be used by phones, alarm systems, fax machines and digital TV boxes, so make sure you don't miss anything out. Microfilters are essential for keeping your phone and Internet services from interfering with each other. Without microfilters you'll see poor speeds and connection drops.

  • You can use a microfilter before or after an extension lead, but not both
  • You can connect two devices to one microfilter if you use a phone adapter
  • If you need more microfilters, you can get them from most electrical stores and supermarkets
  • Don't plug a microfilter into the socket of another microfilter

For more help, please see our Micofilters - how and why.

[Top]

3. Connect your router

Step 1

Assemble the power adapter by sliding the smaller three-pin plug onto it until it clicks into place, as shown.

Once assembled, connect it to the mains and the power socket on the back of the router.

If you've received a 2-part power supply (as shown below), clip the pins onto the adapter.
Step 2

Switch the router on using the circular black button next to the power socket (this may be on the left or right side).

Wait for the power light to turn green before you continue.

Connect the power supply to the mains and the back of the router. Switch the router on using the black button to the left of the power socket.
Step 3

Plug the Internet cable (grey ends) into the microfilter socket marked DSL

Plug the Internet cable into the ADSL side of your microfilter.
Step 4

Plug the other end of the Internet cable into the grey DSL socket on the back of the router.

Plug the other end of the cable into the DSL socket on the back of the router.
Step 5

The Broadband light will flash, wait for it to turn green before you continue (this can take up to 5 minutes).

If the Broadband light doesn't turn green, please see our Connection troubleshooting guide.

Wait till the Broadband light turns green.
[Top]

4. Connect your computer

When setting up for the first time, we think it's easier to use the Ethernet cable. This way you can make sure everything is working and you'll be online in no time.

If using the Ethernet cable isn't convenient or you'd prefer to use wireless right away, please see our Wireless connection guides (remember to return here and follow part 5 when you're done!)

How to connect using the Ethernet cable

Step 1

Plug the Ethernet cable (yellow ends) into one of the 4 yellow Ethernet sockets on the back of your router.

Plug the yellow Ethernet cable into one of the 4 available Ethernet sockets on the back of your router, you'll see the corresponding light turn green as shown below.
Step 2

Plug the other end of the Ethernet cable into your computer's Ethernet socket. The Ethernet light on the router will turn green or flash.

Your computer is now connected to your router, please go to part 5.

Plug the other end of the Ethernet cable into your computer's Ethernet socket.

[Top]

5. Get online

You're nearly there! At this point your router should be plugged in, switched on and connected to your telephone line and computer. The Broadband light should be green.

If the Broadband light is NOT green, please Connection troubleshooting guide. When the broadband Light turns green, remember to return to this guide and follow the next steps.

  1. Make yourself a tea or coffee and don't touch your computer or router for 15 minutes.

    (Don't try to use the Internet while you're waiting, as your router might still be setting itself up)

  2. After 15 minutes, open your computer's web browser (e.g. Internet Explorer, Safari or Firefox).

    • And that's it. You should see your web browser's home page - congratulations! You're now connected and able to browse the Internet

    • If you didn't see your home page, you'll probably see one of the screens below:

    I see the Broadband Setup page I see a 'Technicolor' login screen
    I see the Broadband Setup page. I see a 'Technicolor' login screen.

    Enter your Account Username and password (the ones you use to log into this site), choose your provider and press Go.

    You'll see a confirmation screen shortly afterwards and you'll be able to start browsing.

    Please click here for further instructions.

    (If you print this guide, the further instructions will be shown underneath)

How to setup your router

  1. Enter admin as the Username.

    For the Password enter the SN number shown on the bottom of your router or your setup card (it starts with CP)

    Click OK to continue.

    Enter admin as the Username. For the Password enter the SN number shown on the bottom of your router or your setup card (it starts with CP)
  2. Now you'll need to enter your Broadband Username and password.

    Click Connect when you've done this.

    Now you'll need to enter your Broadband Username and password. Click Connect when you've done this.
  3. After about a minute the Internet light on your router will turn green and you'll see Configuration Sucessful. Close your web browser window.

    After about a minute the Internet light on your router will turn green and you'll see Configuration Sucessful. Close your web browser window.
  4. Open a new browser window and you'll see your home page. Congratulations, you're now connected and able to browse the Internet.

[Top]

6. Troubleshooting: What are the lights on the router telling me?

If you're having problems getting connected, the lights on the front will show you what's wrong. Use the table below as a reference for what to do next.

Light / Colour What it means
Power / Off The router is off. Check the power cables and make sure you've switched your router on using the black button on the back
Power / Red The router is starting up. If this remains red for more than a few minutes, switch your router off for a few minutes and then try again
Power / Yellow The router software is updating. Leave the router on until the power light turns green
Power / Green The router is ready to use
Ethernet / Off Nothing is connected via Ethernet cable
Ethernet / Green At least one device is connected via Ethernet cable
Ethernet / Flashing Green Data is transferring
Wireless / Off Wireless is off
Wireless / Red Wireless is on; Wireless security is off
Wireless / Yellow Wireless is on; Wireless security is on and using WEP
Wireless / Green Wireless is on; Wireless security is on and using WPA or WPA 2
Wireless / Flashing Green Data is transferring
Broadband / Off or Flashing Green There's a problem with the broadband signal. Make sure cables and microfilters are correctly - see steps 2 and 3 of this guide for help
Broadband / Green Broadband is detected and active
Internet / Off There's no Internet connection
Internet / Red Connection to Internet failed - open your web browser and follow the appropriate instructions on step 5 of this guide
Internet / Green Router is connected to the Internet

[Top]

This page last updated 26th June 2012
